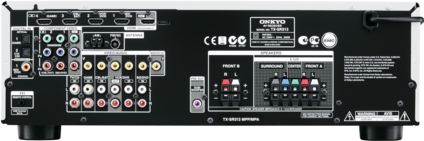

Cadena 5.1-Channel Home Cinema Receiver Receptor A/V ONKYO TX-SR313 Color plata
Affordable Home Theater Just Got Better
With the addition of Onkyo’s acclaimed WRAT (Wide Range Amplifier Technology) to its entry-level A/V receivers, home cinema fans
on a budget can now enjoy greater fidelity than ever before. This 5.1-channel AVR packs an array of features into a compact and stylish
cabinet—all designed to perfect audio performance and seamlessly integrate your A/V components into one intelligent and powerful
system. Four HDMI® inputs and one output provide connectivity for your 3D TV, gaming consoles, and BD player, while a USB port offers
a clean digital link to your iPod/iPhone or flash memory drive. An HDMI-linked interactive on-screen display makes set-up and
mid-program adjustment easy. Naturally, the AVR decodes a range of high-definition codecs such as Dolby® TrueHD and DTS-HD Master
Audio™. But it’s the sound that really sets Onkyo apart, and you can rest assured that with the TX-SR313, you’re getting the precision
build, power, and fidelity that you might expect from a more expensive component.
SPECIFICATIONS
Amplifier Section
Power Output
Front L/R 100 W/Ch (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W/Ch
(6 Ω, 1 kHz, 1 Channel Driven, JEITA)
Center 100 W (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W
(6 Ω, 1 kHz, 1 Channel Driven, JEITA)
Surround L/R 100 W/Ch (6 Ω, 1 kHz, 1% THD,
1 Channel Driven, IEC)
120 W/Ch
(6 Ω, 1 kHz, 1 Channel Driven, JEITA)
Dynamic Power 160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Damping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance
200 mV/47 Ω (Line)
Rated RCA Output Level and Impedance
200 mV/2.2 kΩ (Rec Out)
Maximum RCA Output Level and Impedance
2.0 V/2.2 kΩ (Rec Out)
Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (DSP Bypass)
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 6 Ω – 16 Ω
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ω (Component) 0.7 Vp–p/75 Ω (Component PB/CB, PR/CR)
1.0 Vp–p/75 Ω (Composite)
Component Video Frequency Response
5 Hz–100 MHz/+0 dB, -3 dB
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 230 V~, 50/60 Hz
(Asian Model:
AC 220–240 V~, 50/60 Hz)
Power Consumption 300 W (Asian Model: 340 W)
Dimensions (W x H x D) 435 x 150 x 318 mm
Weight 7.6 kg
CARTON
Dimensions (W x H x D) 537 x 268 x 416 mm
Weight 9.6 kg (Asian Model: 9.8 kg)
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker cable labels
• Instruction manual • Quick start guide • Remote controller
• AA (R6) batteries* x 2
*Not included with Chinese model.
